Cubemaps in Painkiller

A cubemap aka skybox is a texture that contains 6 individual 2D textures that each form one side of a cube: a textured cube.

Cubemaps in Painkiller are used for teleports on any settings and water on low settings.

It's possible to use cubemaps for skyboxes in Painkiller assigned to outer cube like in most other games; however, Painkiller uses skydomes by default, which is a different technololy and skyboxes are not recommended because a skybox will block the vision of any skydome on the map in this case.

Warning

Cubemap sizes should be proportional: 512x512, 1024x1024, 2048x2048, 4096x4096.

Assemble cubemaps/skyboxes from sources for Painkiller

It's difficult to find one image cubemaps/skyboxes in the internet. They are usually shipped as 6 separate images (back, bottom, front, left, right, top).

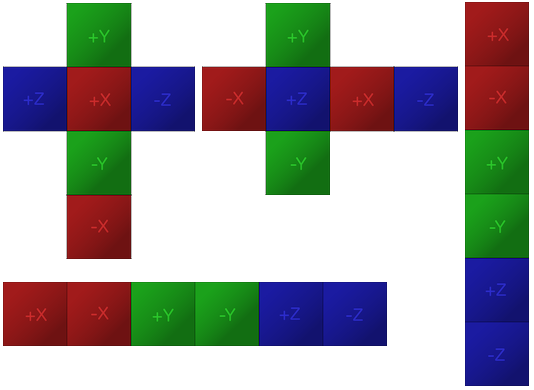

Check the relations between the axis and the images on this picture:

Note

X+ (right); X- (left); Y+ (top); Y- (bottom); Z+ (front); Z- (back)

Let's assemble a cubemap/skybox. You can download all the image sources here.

You need Photoshop or free and opensource GIMP for this procedure. I will be using GIMP.

Note

Painkiller uses the following names for the cubemap layers:

Layer name	Image side
main surface (positive x)	right
main surface (negative x)	left
main surface (positive y)	top
main surface (negative y)	bottom
main surface (positive z)	front
main surface (negative z)	back

Example 1

This step is not necessary but I recommend reducing the size of each image to 512x512. That's the size Painkiller uses for the default cubemaps.
- Open each image in GIMP and choose Image -> Scale Image.
- Put width and height 512.
- Click Scale.
- To save it, click File -> Export as. Name it as a resized image and click Export.
- Change quality to 100% and click Export.

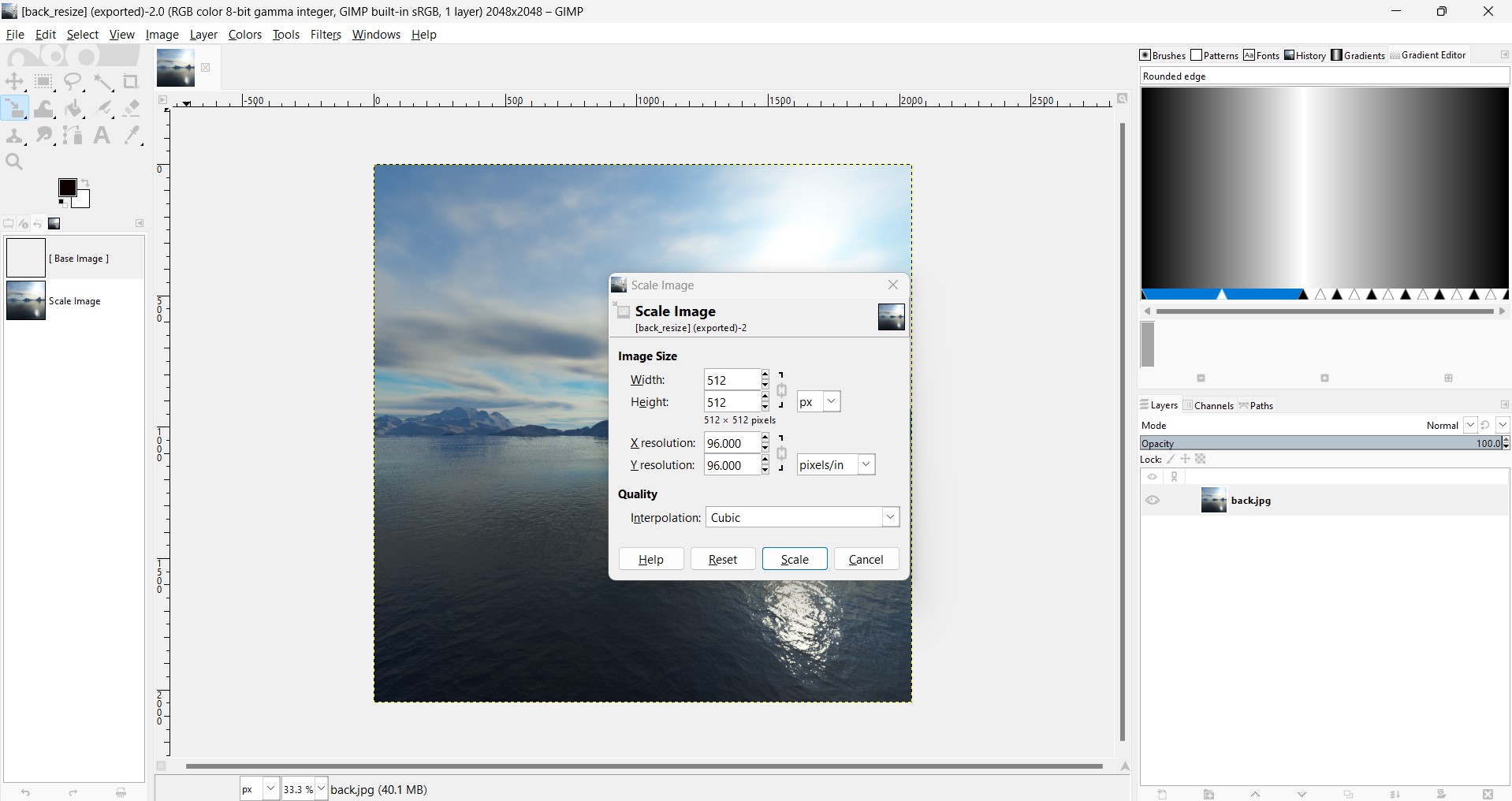

Image resize

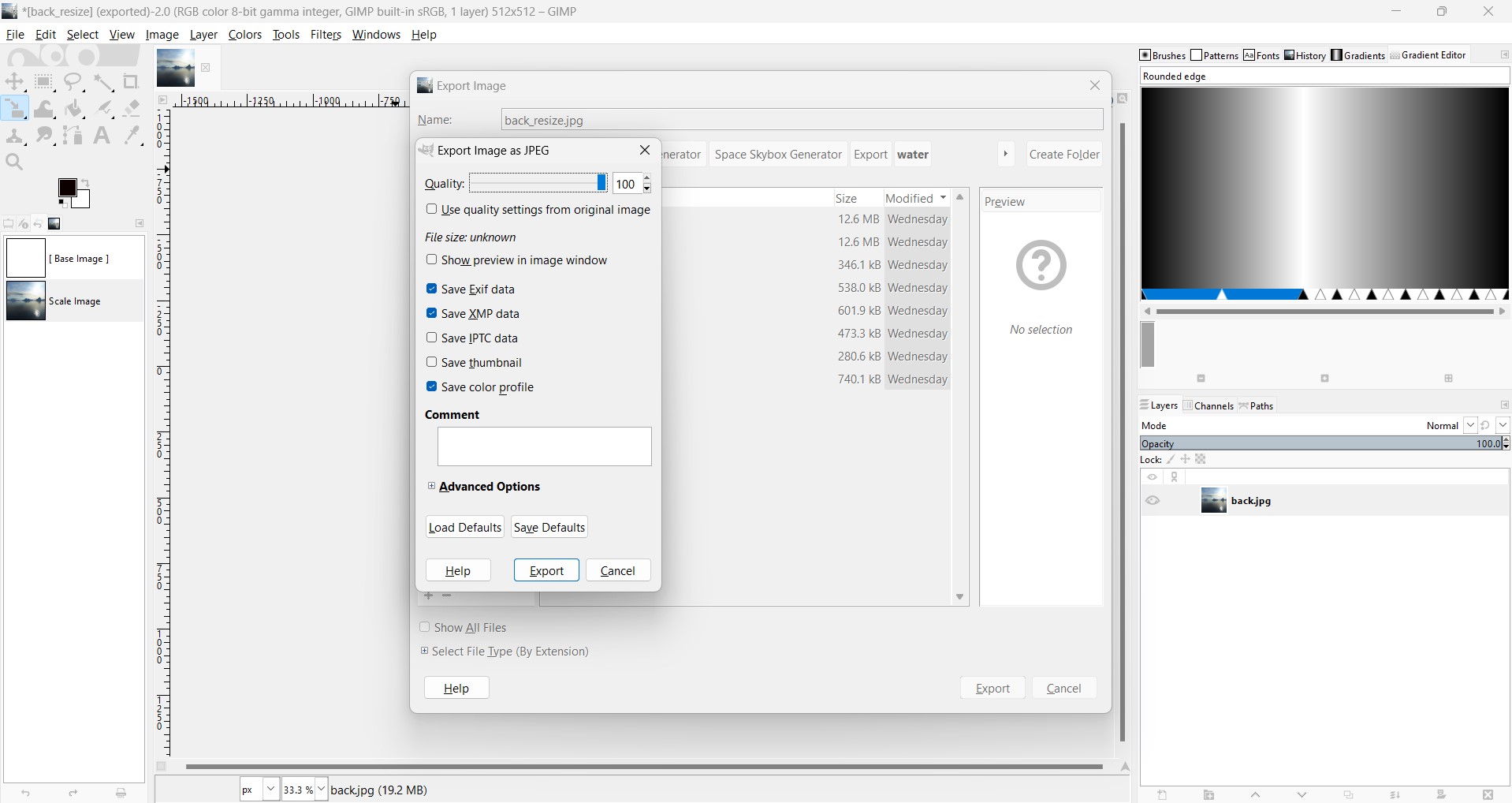

Image export
Create layers
- Once all images are resized, open any resized image in GIMP and drag and drop other images as layers to the GIMP Layers pane:
Cubemap layers
- Rename the layers according to the scheme matching the sides to the corresponing images (the order of layers does not matter but I will keep to the Painkiller defaults):

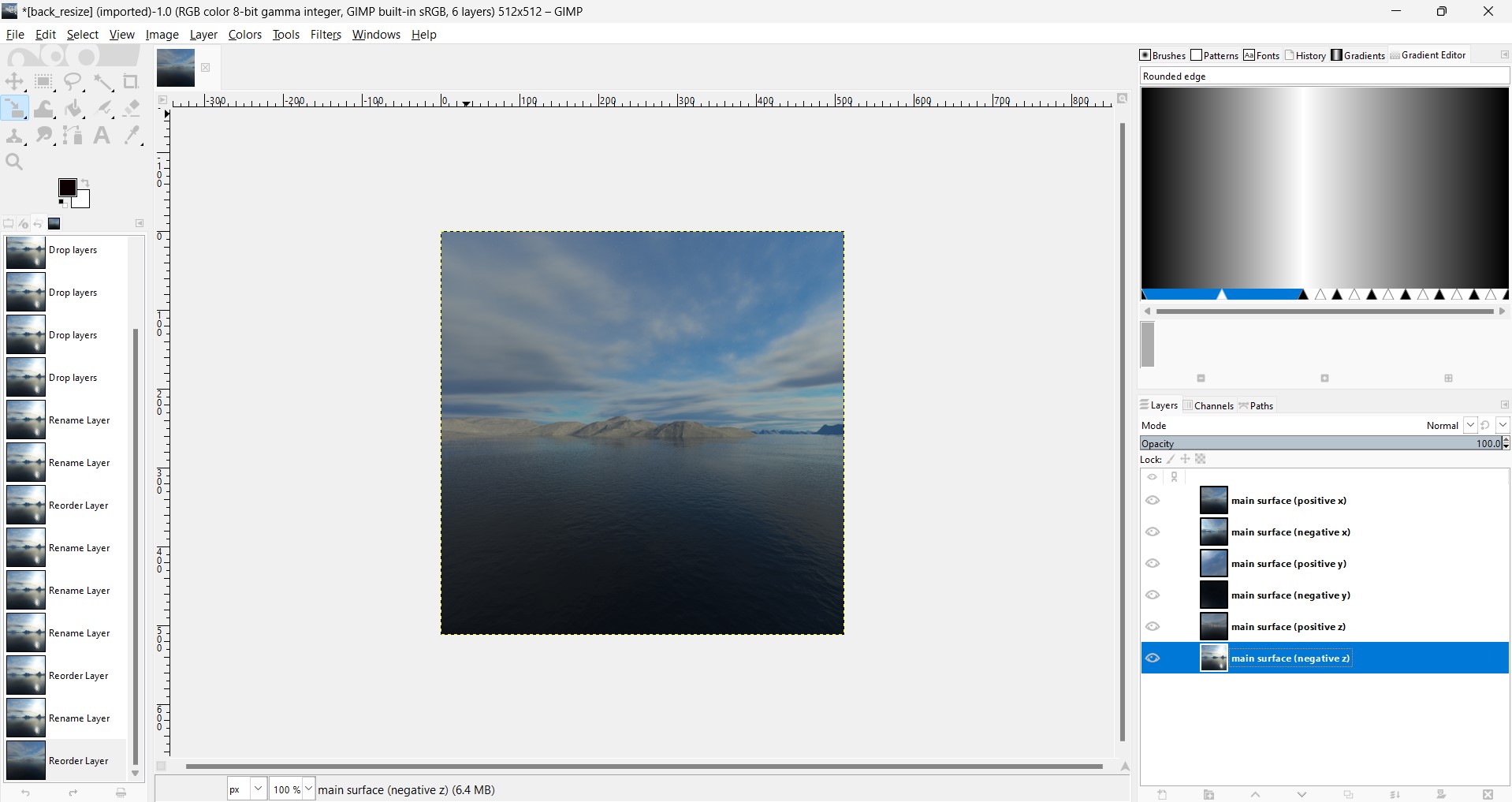

Cubemap layers
- Click File -> Export as, choose Select File Type (by extentions), find first dds from the list, rename the file to, for example, "scene1_cubemap.dds", and click Export.
- Use the following settings:
  - Compression: BC1/DXT1
  - Save: As cube map
Cubemap export
Test the cubemap.

I will use DM_Sacred for testing.
- Extract DM_Sacred folder from Painkiller Data/Levels.pak. Do not use PainEditor for this because it won't extract MapEntities. Use only custom extraction tools.
- Copy the extracted DM_Sacred folder to Data/Levels. Create folders if required. The path should be Painkiller/Data/Levels/DM_Sacred.
- Rename the map so that it won't conflict with the original. You need to rename the map Levels folder and the Clevel file. the For example, Painkiller/Data/Levels/DM_Sacred_cubemap_test/DM_Sacred_cubemap_test.CLevel
```
    .
└── DM_Sacred_cubemap_test
    ├── CAcousticEnv
    ├── CArea
    ├── CBillboard
    ├── CBox
    ├── CEnvironment
    ├── CItem
    ├── CLight
    ├── CParticleFX
    ├── CSound
    ├── DM_Sacred_cubemap_test.CLevel
    └── MapEntities
```
- Copy your cubemap file to Painkiller\Data\Textures\Special\scene1_cubemap.dds. I named it as "scene1_cubemap.dds". Create folders if do not exist.
- Open ..\Painkiller\Data\Levels\DM_Sacred_cubemap_test\MapEntities\tele5_ashape.EMesh and change the line o.CubeMap.Tex = "special\\dziedz_d_obrucona" to o.CubeMap.Tex = "special\\scene1_cubemap" without extension.
- Open the game or PainEditor and check the teleport on DM_Sacred_cubemap_test

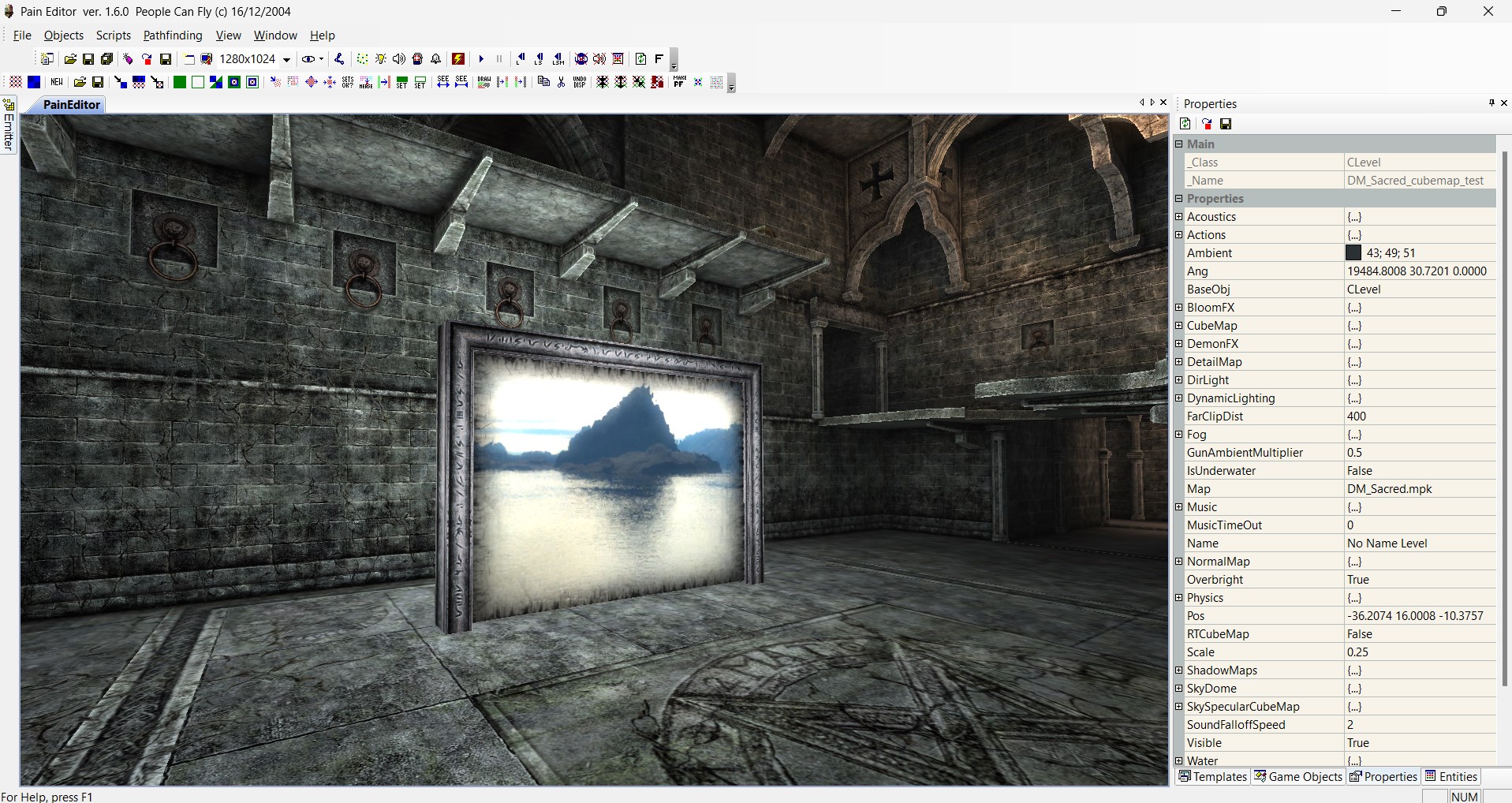

Cubemap example

Example 2

Let's make a Quake 1 like teleport for Painkiller.

Download Space Skybox Generator.
Generate a skybox with 512x512 pictures using Space Skybox Generator. It will generate 6 images into the Export folder.
Assemble the skybox like it was previously described.
Apply it to DM_Sacred_cubemap_test.

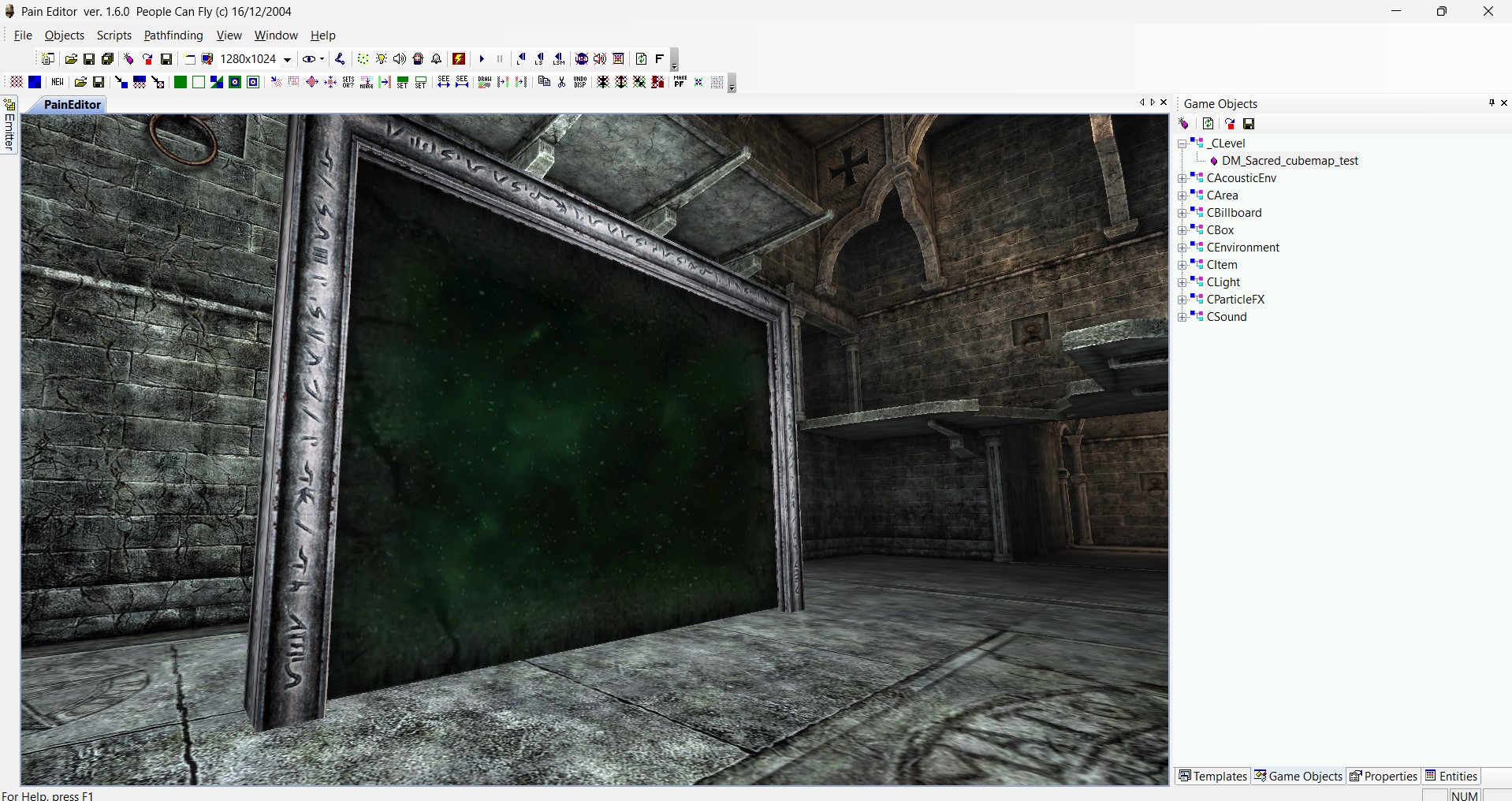

Space cubemap example

Painkiller cubemap shaders

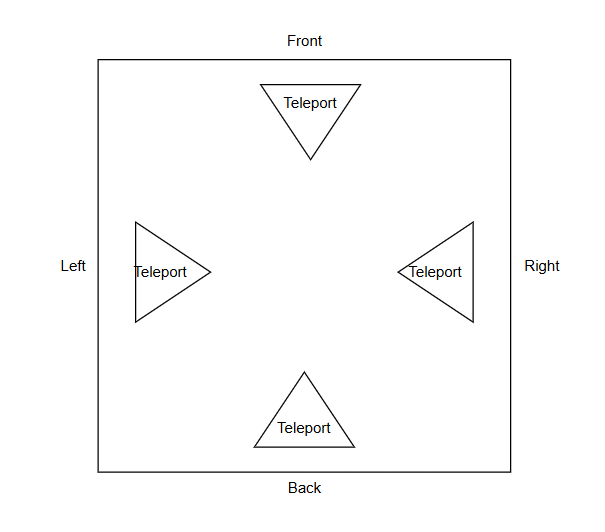

Painkiller cubemap shaders for teleports work in a way that cubemap will always face the direction you generated it for. It means that various teleports in various positions will see different cubemap sides of the same cubemap. Look at it as if cubemap is around the whole level and not just inside the teleport.

Thus, sometimes you will have to rename, rotate, and flip the cubemap layers to see the desired image side. In GIMP, Layer -> Transform menu.

Example when you need to rotate the cube through 180 degree. Use these parameters:

Note

X+ left; X- right; Y+ top (rotate by 180 degree); Y- bottom (rotate by 180 degree); Z+ back; Z- front

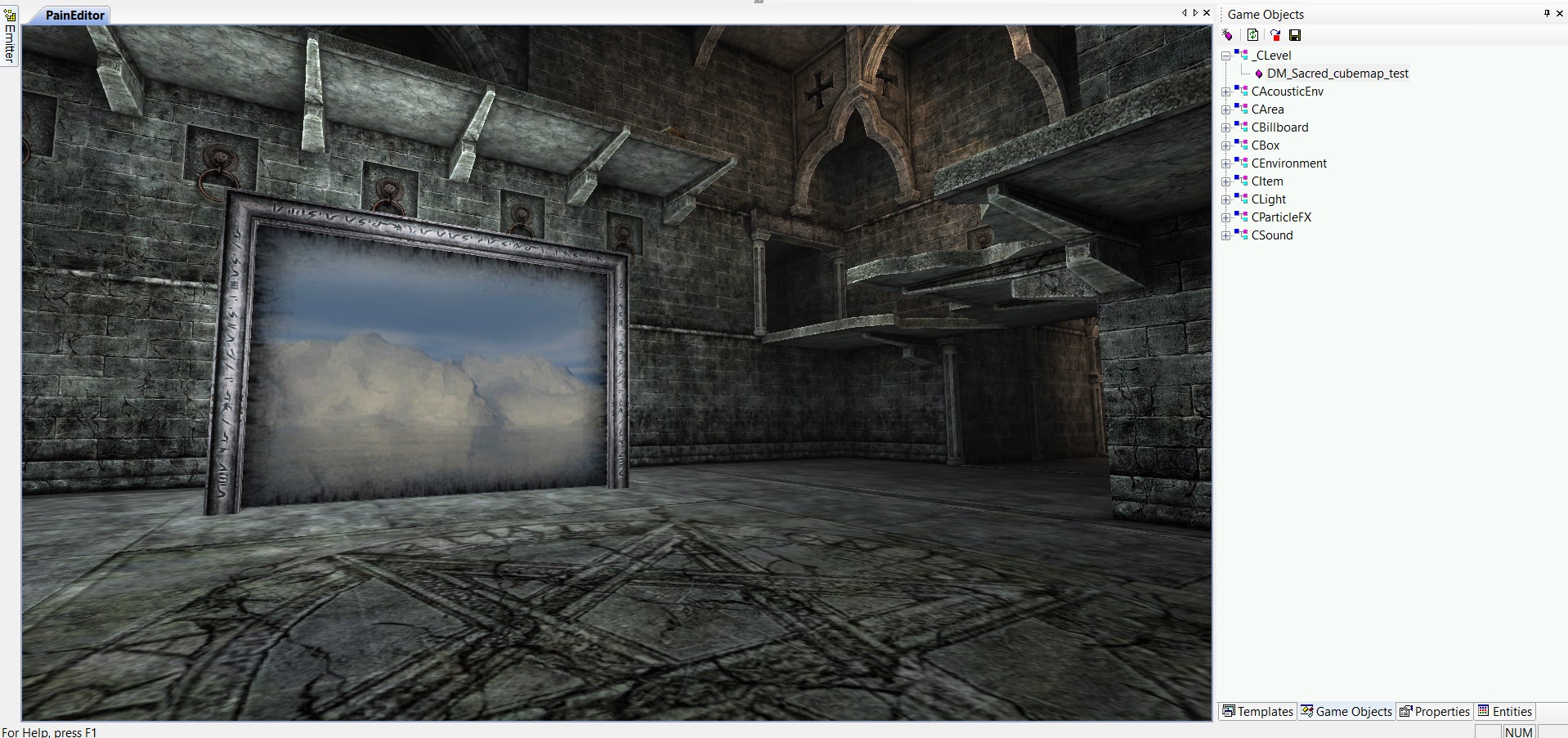

The result:

Free skyboxes

https://www.humus.name/index.php?page=Textures&start=0

https://github.com/sheraadams/OpenGL-Skyboxes-and-Photoshop-tutorial/tree/main/Skyboxes

https://www.slipseer.com/index.php?resources/makkon-skyboxes.139/

https://lvlworld.com/download/id:2023

AI skyboxes, when you try to download a skybox from blockadelabs which is not fee, it'll allow you to download a free sample pack:

https://skybox.blockadelabs.com/
